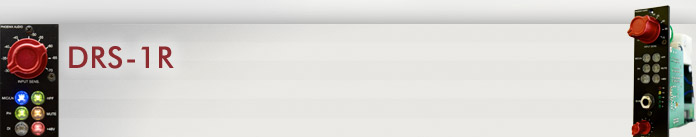

DRS-1R header

DRS-1R - Mono Class A Microphone Pre-Amplifier/DI in API 500 Series Format

The Phoenix Audio DRS1R/500 is a mono pre amp and DI for the API 500 series, it was designed to be identical in terms of features and sonics as the ever popular DRS1 but in a new format. The unit runs at 24v thanks due to the special power supply built into the unit so it offers no sonic sacrifices whilst still maintaining a very low current use needed for the API format and is well within its API VPR limits.

Specifications

  • Class A (DSOP2) Output specs. Frequency response: 20Hz to 20kHz +- 0.5dB, Maximum Output = +26dBu @ 1kHz, Noise = -90dB @ 20Hz to 20kHz.
  • Output connections: XLR’s on rear panel of API rack
  • Phoenix Audio’s unique Class A, transformerless, True balanced Mic input stage.
  • Custom wound Phoenix output transformer.
  • Microphone input: XLR’s  Rear Panels of API rack
  • Gain Range (Mic input): -30 to -70 in 5dB steps With 10dB more available on the output fader.
  • Gain reduction: -30dB push-button Mic/Line switch (Mic input)
  • High Input Impedance DI: Mono 1/4″ Jack on front panel
  • Gain Meter: LED Metering. (Green = -2dbu, +4dbu & 0dBu, Yellow = +13dbu Red= +16dBu)
  • Phantom Power: Switchable phantom on Push-button Switch
  • High Pass Filter: on Push-button Switch, 120hz 6db per octave
  • Phase Reverse: on Push-button Switch
  • Mute : on Push-button Switch
  • Frequency Response Mic Input Stage: -0.4dB @ 40Hz, -0.3dB @ 25kHz
  • Frequency Response: DI Input Stage: -0.3dB @ 40Hz, – 0.5dB @ 25kHz
  • Typical Headroom: +24dB on Mic-Pre stage
  • DI Stage gain: Maximum of 20dB
Documentation

pdficon

DRS-1R-500 Product Manual

pdf Format 191 kB

pdficon

DRS1R Recall sheet

pdf Format 107 kB
